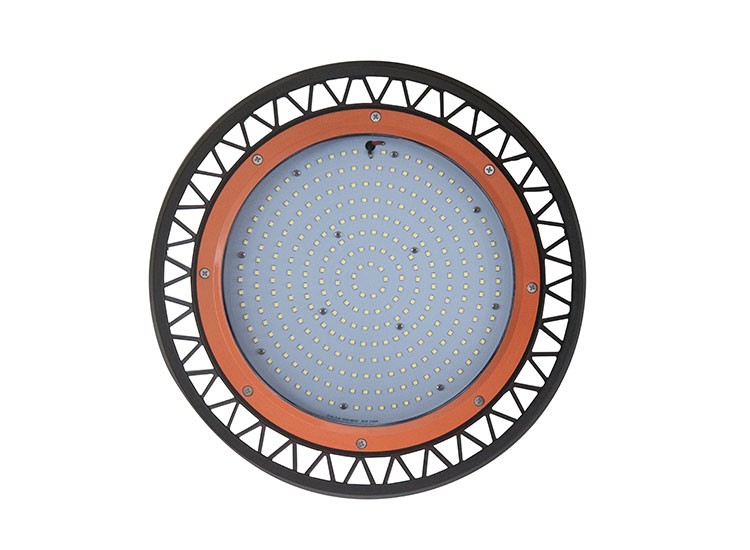

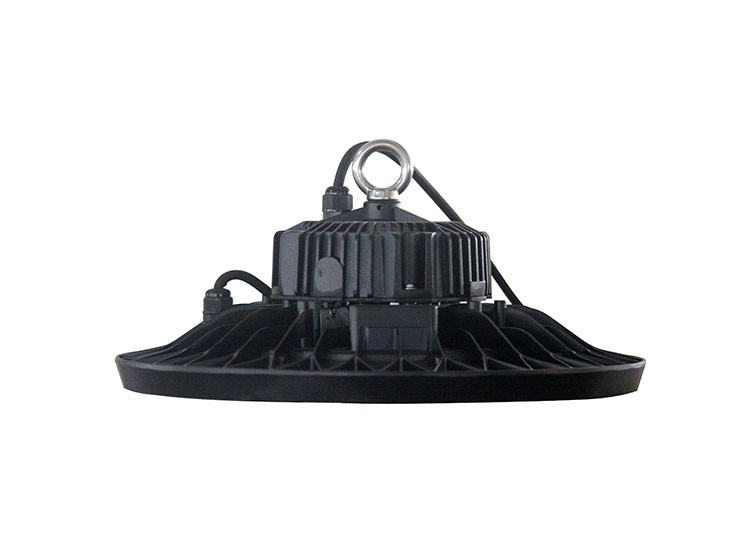

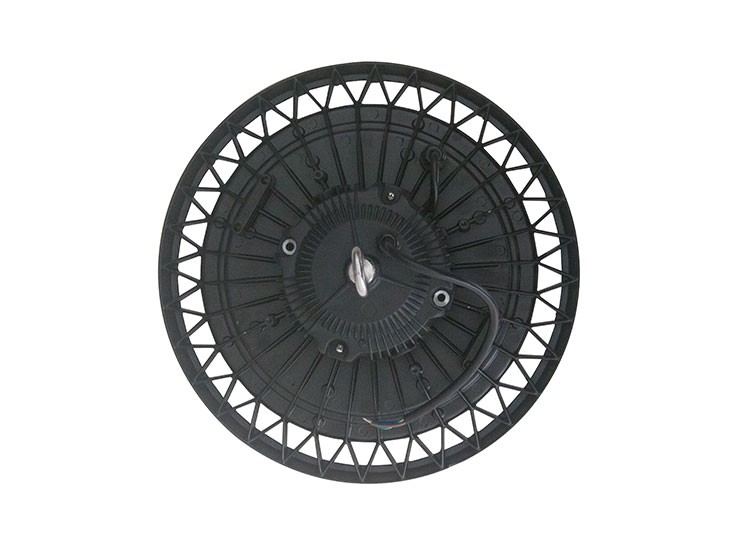

ZION Series B High Bay

Power range 100W-250W
Light efficiency up to 130lm/W
Beam angle 120°
Die-casting housing and high transmittance glass
Hollow-out structure for better hea dissipating Photocell sensor available for option
No flicker with Meanwell or Zion driver
ENEC, CB, CE, RoHS certified

EMAIL

Product Parameters

Series No

Series B

Power

100W, 150W, 200W, 250W

Efficacy

130lm/W

Input Voltage

100-277 VAC, 50 / 60 Hz

Power Factor

0.98

Surge Protection

6KV (Default) / 10/20KV (available on request)

IP Rating

IP65

IK Rating

IK08

CCT

3000K, 4000K, 5000K

CRI

Ra>75 (Default) / Ra>85

Operating Temperature

-40°C to + 50°C

Beam Angle

                                    120°

Lifespan(L70)

  72000Hrs

Warranty

                                          3/5 years warranty

Power supply

Zion/Meanwell

Protection class IEC

Class I

Certification

CE, ROHS, LM80
