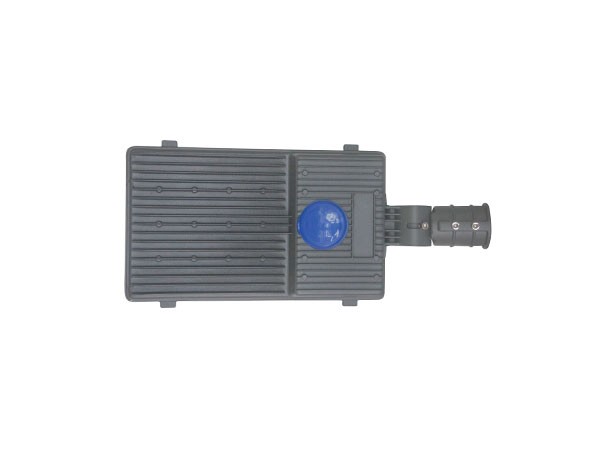

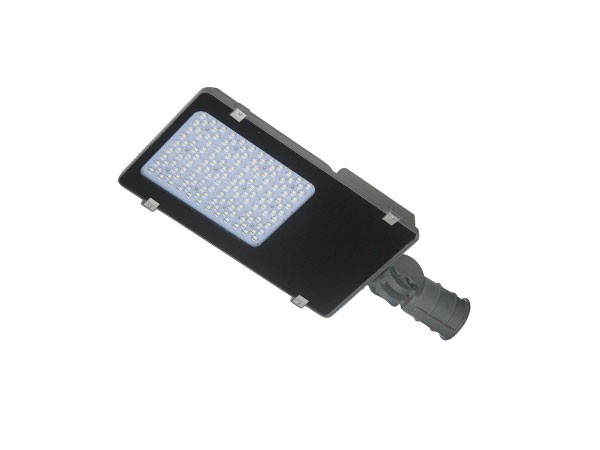

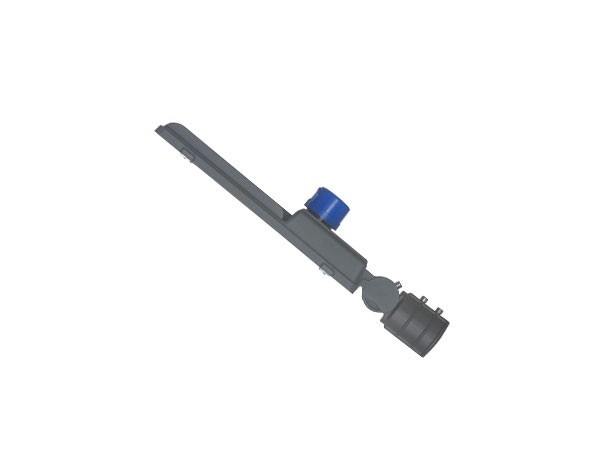

ZION Series H Street Light

Power range 60W-300W
Light efficiency up to 150lm/W
Beam angle 30°/60°/90°/120°/TPII/TPIII/136*78°
IP66/IK10 for outdoor applications
Die-casting housing and high transmittance glass
Functional design, arms 90° adjustable for different applications Photocell sensor available for option
No flicker with Meanwell driver
UL, ENEC, CB, CE, RoHS certified

EMAIL

Product Parameters

Series No

Series H

Power

60W, 100W, 200W, 300W

Efficacy

150lm/W

Input Voltage

100-277 VAC, 50 / 60 Hz

Power Factor

0.98

Surge Protection

6KV (Default) / 10/20KV (available on request)

IP Rating

IP66

IK Rating

IK10

CCT

3000K, 4000K, 5000K

CRI

Ra≥75 (Default) / Ra≥85

Operating Temperature

-40°C to + 50°C

Beam Angle

         30°/60°/90°/120°/TPII/TPIII/136*78°

Lifespan(L70)

  72000Hrs

Warranty

                                            5 years warranty

Power supply

Meanwell

Protection class IEC

Class I

Certification

UL, ENEC, CB, ROHS, LM80
