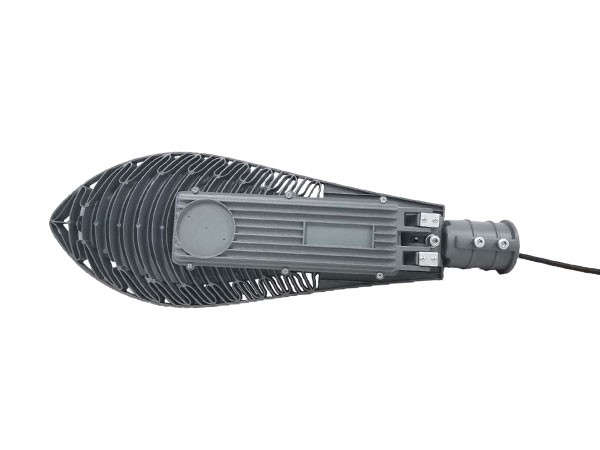

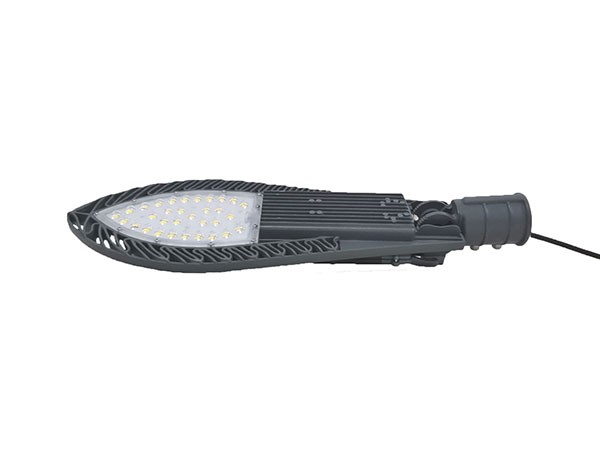

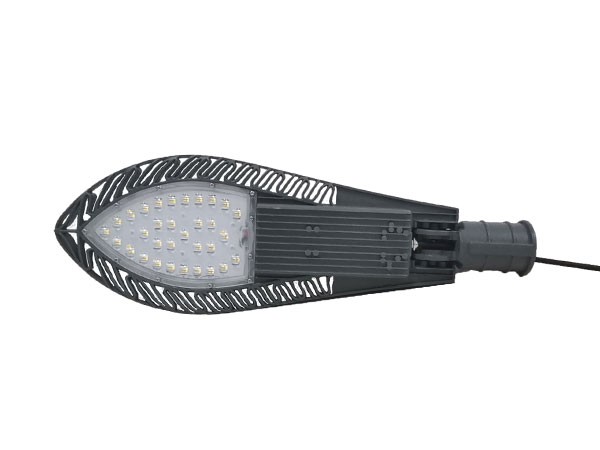

Series G Street Light
Power range 50W-300W
Light efficiency up to 150lm/W
Beam angle TPIII, 136°*78°
IP67/IK10 for outdoor applications
Die-casting housing and UV resistant PC lens
Functional design, arms 90° adjustable for different applications
Curved & hollow-out structure for better heat dissipating . Photocell sensor available for option
No flicker with Meanwell or Inventronics driver
UL, ENEC, CB, CE, RoHS certified
Product Parameters
Series No | Series G |
Power | 50W, 75W, 100W, 150W, 200W, 250W, 300W |
Efficacy | 150lm/W |
Input Voltage | 100-240/ 277 VAC, 50 / 60 Hz |
Power Factor | 0.98 |
Surge Protection | 6KV (Default) / 10/20KV (available on request) |
IP Rating | IP67 |
IK Rating | IK10 |
CCT | 3000K, 4000K, 5000K |
CRI | Ra≥75 (Default) / Ra≥85 |
Operating Temperature | -40°C to + 50°C |
Beam Angle | TPIII/ 136°*78° |
Lifespan(L70) | 72000Hrs |
Warranty | 5/7 years warranty |
Power supply | Meanwell / Inventronics |
Protection class IEC | Class I |
Certification | UL, ENEC, CB, ROHS, LM80 |
